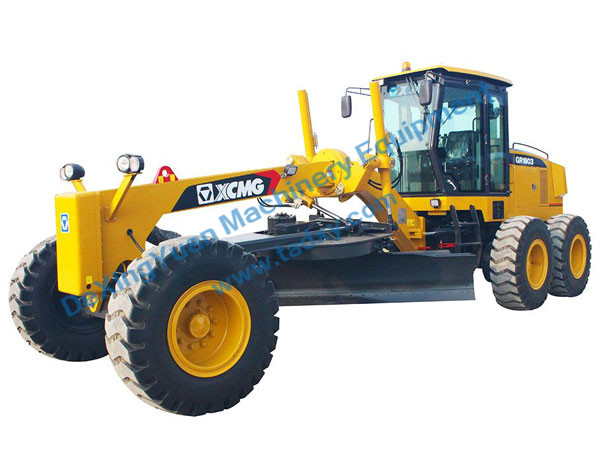

Basic specification

Engine model

SC9DK200.1G3

Rated power/speed

147kW/2000rpm

Dimension(LxWxH)

8900×2625×3420mm

Operating weight(Standard)

15400kg

Performance specification

Travelling speed ,forward

5、8、11、19、23、38 km/h

Travelling speed ,reverse

5、11、23 km/h

Tractive force(f=0.8)

80KN

Max. gradeability

30%

Tire inflation pressure

260 MPa

Working hydraulic pressure

20 MPa

Transmission pressure

1.3～1.8MPa

Operating specification

Max. steering angle of front wheels

Left / Right 48°

Max. lean angle of front wheels

Left / Right17°

Max. oscillation angle of front axle

Up / down15°

Max. oscillation angle of balance box

Before / after15

Frame articulation angle

Left / Right27°

Min. turning radius using articulation

7.3m

Blade

Maximum lift above ground

450mm

Maximum depth of cutting

500mm

Maximum blade position angle

90°

Blade cutting angle

28°—70°

Circle reversing rotation

360°

Moldboard width X height

3965×610mm

Service refill capacities

Fuel tank

280L

Engine

24L

Coolant

50L

Transmission

38L

Balance box

46L

Drive axle

28L

Hydraulic oil

110L

Worm wheel box

2.5L
